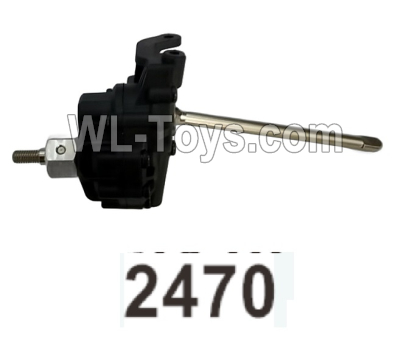

The Product Includes as follow:
104003 Straight Bridge Reduction Gearbox Cover: The Specification is J162BH with the color of black, the quantity is 1pcs
104003 Front Straight Bridge Right Reduction Gearbox Base: The Specification is J162BH with the color of black, the quantity is 1pcs
104003 Wheel Axle: The Specification is 6X42mm Medium Carbon Steel Nickel Plated Environmentally Friendly, the quantity is 1pcs
104003 Hex Wheel Seat: The Specification is 12X12X11.0mm Aluminum Environmentally Friendly, the quantity is 1pcs
Smooth Shaft: The Specification is 2X10MM Bearing Steel Nickel Plated Environmentally Friendly, the quantity is 1pcs
Smooth Shaft: The Specification is 2X12MM Bearing Steel Nickel Plated, the quantity is 1pcs
104003 Universal Cross Shaft: The Specification is 3.5X6mm Medium Carbon Steel Nickel Plated, the quantity is 1pcs
104003 Front Bridge Right Drive Shaft: The Specification is 7.8X72.9mm Medium Carbon Steel Hardened Nickel Plated Environmentally Friendly, the quantity is 1pcs
Ball Bearing: The Specification is 12X18X4 Environmentally Friendly, the quantity is 1pcs
Ball Bearing: The Specification is 5X10X4 Environmentally Friendly, the quantity is 1pcs
Ball Bearing: The Specification is 6X13X5 Environmentally Friendly, the quantity is 1pcs
Ball Bearing: The Specification is 6X12X4 Environmentally Friendly, the quantity is 1pcs
104003 Front Straight Bridge Reduction Gearbox Primary Reduction Gear: The Specification is M0.8X9T Powder Alloy (Material: SMF5030 Carburized) Environmentally Friendly Mold No.: PW1054F, the quantity is 1pcs
104003 Front Straight Bridge Reduction Gearbox Secondary Reduction Gear: The Specification is M0.8X23T Powder Alloy (Material: SMF5030 Carburized) Environmentally Friendly Mold No.: PW1053F, the quantity is 1pcs
Screw/11 Machine Screw Shaft: The Specification is M3X2.5X11 Thread Length 3 Headless Carbon Steel Black Zinc Plated Grade 10.9, the quantity is 1pcs
Pan Head Hex Socket Screw: The Specification is 2.5X4TM D4.5 Pan Head Carbon Steel Hardened Black Zinc Plated Grade 10.9, the quantity is 3pcs
Hex Socket Head Cap Screw: The Specification is 2.5X10HM D4.5 Hex Socket Head Carbon Steel Hardened Black Zinc Plated Grade 10.9, the quantity is 8pcs
These Parts are used for the Wltoys 104020 RC Car Buggy, Wltoys 1/10 High-Speed Drift Racing Car
