FX078 Camera unit-Upgrade parts-FX078 Helicopter Camera Unit Feilun toys FX078 rc helicopter Spare parts

  • Product SKU:0001988
  • Market Price:$
  • Unit Price:$
  • Wholesale Price
    (Buy more Save More)
    Quantity Price: $ < $ < $ < $ < $ < $ >= $
  • Brand:feilun
  • Comment:Comment(Have0 comments now.)
  • Out of stock, This item is out of stock now.About Shipping>>  How To Pay?>>
  • Quantity:
FX037 FX059 FX078 Parts UniT 1
(10x Tail blades)
Usual price:$38
Today only $12.99
Click for details
FX037 FX059 FX078 Parts Unit 2
(10x Main blades)
Usual price:$48
Today only $15.99
Click for details

FX037 FX059 FX078 Parts unit 3
(10x Main blades,10x Tail blades,1x horizontal wing,1x verticall wing,1x Head of the inner shaft & Upper main grip set & Round-Shap buckle(2pcs),2x Chopper Tail unit,1x Support pipe with fixtures-Black,1x long tail pipe-Black)
Usual price:$68
Today only $39.99
Click for details
FX037 FX059 FX078 Parts unit 4
(10x Main blades+10x Tail blades)
Usual price:$38
Today only $24.99
Click for details

FX078 Camera unit-Upgrade parts-FX078 Helicopter Camera Unit

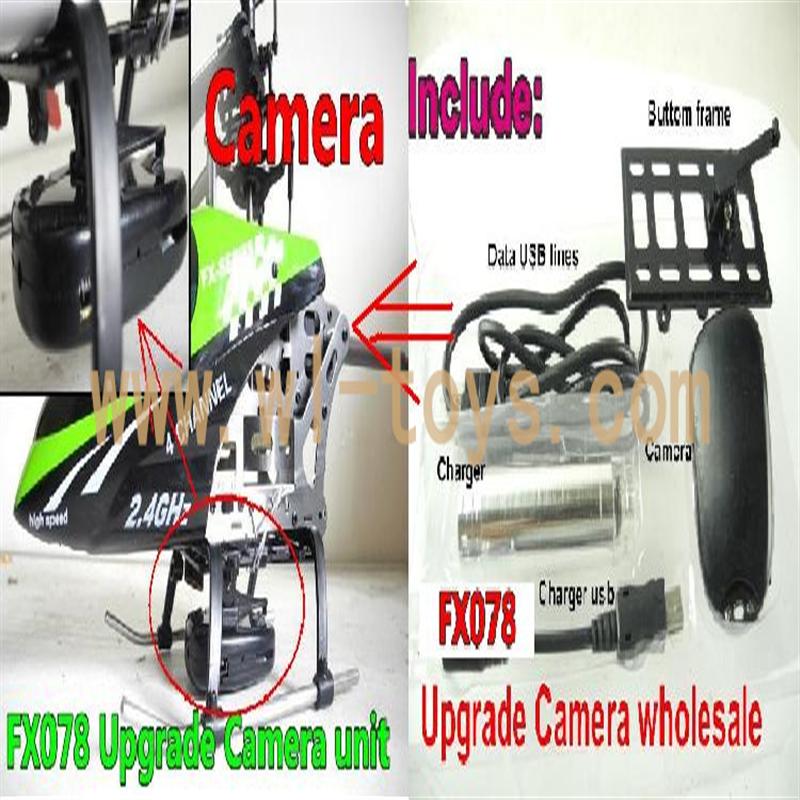

A).Product include:Buttom frame*1,Data usb line*1,Camera(Contains the Memory card-130W pixels)*1,Charger usb*1,Charger*1

B).How to install the camera unit for the wl v913 helicopter?

1.Connect the Camera onto the Buttom frame

2.Just like the picture to connect.

3.When connect it,You must fasten it.like the picture said below

4.Put the camera unit onto the buttom of helicopter

5.Here you can Use the wire or line  Fastened the camera unit onto the buttom of the helicopter。Specific location recommendedrearward.This is conducive to maintaining the balance of theaircraft flight

6.Finished,Here you can Adjust the shooting angle of thecamera



C)How to Use the camera?

C-1).Camera function Introduction:

A)1300,000 pixels, HD video recording, manual camera.

B)2GB memory Card , can camera about 50 minutes
C)Configure 200mah polymer battery energy.
D)Configuration multipurpose charger, can be used independently, easy to carry.

  This camera unit has 2GB memory ,vedio can use the 1.7~1.8GB Memory. the left memory can continue to take photo (when take photo you need to click the take photo button by hands). also this camera has 200mah battery inside the camera unit,you can use USB to connect the camera unit ,then can Charge ,or Put 1x 1.5V AA Battery into the charger( Need for high-capacity battery),then use the USB connect to the charger ,and also use usb connect to the camera unit ,then can charge.

C-2).Vedio Output:

A) Remove the camera unit from the helicopter

B) Turn off the camera unit(Power on/off button) ,then use the USB line to connect the camera unit ,and also use the USB line to connect to the Computer

C) Open your computer ,the removable hard disk can be found in a subdirectory. just go in it ,you can find the camera vedio or photo.

D) Also you can You can take down the memory card from the camera unit,Use a Reader to read the information of Memora card



 C-3).Charge method:

A)this camera has 200mah battery inside the camera unit,you can use USB line to connect the camera unit to the computer ,then can charge ist ,usually need 40 minute to charge
Just at this time , if the indicator color is Yellow ,and Flicker, it means now is charging the power
if the battery was charged full power ,the color of the indicaor will Always yellow.

B) Also when you are outdoor ,you can Put 1x 1.5V AA Battery into the charger( Need the high-capacity battery),then use the USB line connect the charger to the camera unit , then can charge.

 C-4).Time Settings:

 A)Turn off the camera unit(Power on/off button), Then open your computer ,go into the Disk root directory

B)Create a TAG.TXT file, enter the current time format as: 2009-01-01 10:10

 C)After uninstalling the security cameras removable disk, reboot the camera, the time to complete the setup.
