How to install the SYMA X8C X8W X8G brushless motor Kit?

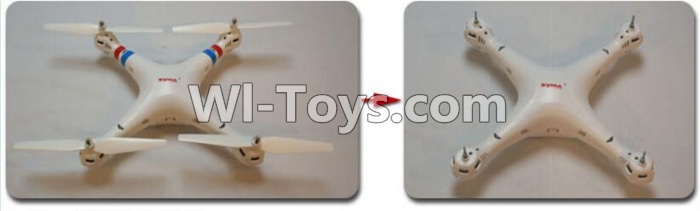

1). Very simple ,Just remove the Original Propellers ,Red and Blue Sticker from the SYMA X8C X8G X8W Quadcopter body

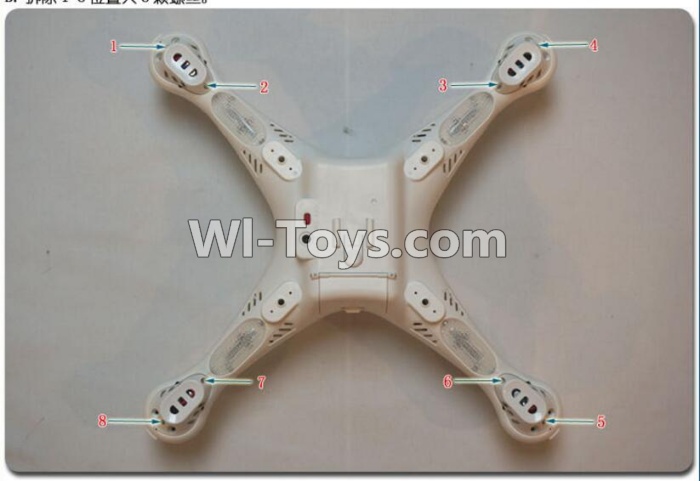

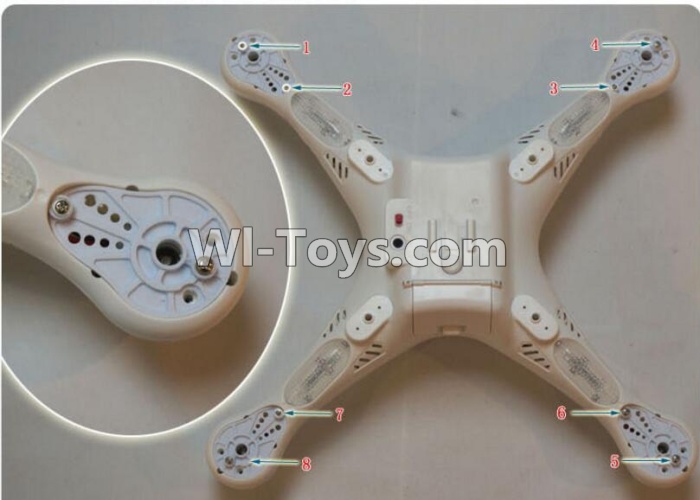

2)Remove the Position 1-8 Screws from the Quadcopter body(See the picture below,The screws' position is on the follow picture 1,2,3,4,5,6,7,8),Total 8pcs screws.

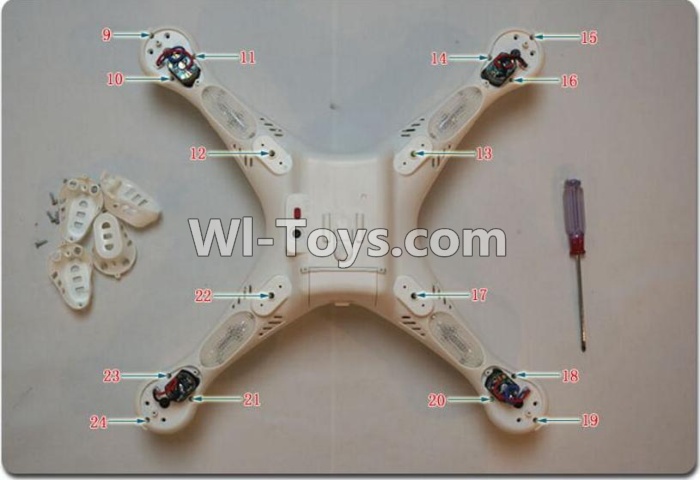

3)Remove the Position 9-24 Screws from the Quadcopter body(See the picture below,The screws' position is on the follow picture 9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24),Total 16pcs screws.Then you can successful Separate the upper and lower body shell cover

4)Remove the Position 25-30 Screws from the Quadcopter body(See the picture below,The screws' position is on the follow picture 25,26,27,28,29,30).Then you can successful remove the Origianal Circuit board,motor cover,and main gear from the Quadcopter body.

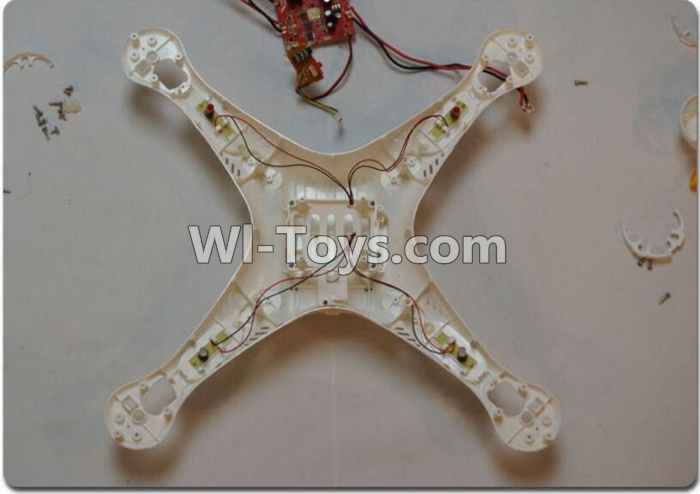

5)The demolition work is Finished,You can see the picture as follow :

6)First ,you must remove the plastic slider from the original switch parts .Then you can install this plastic slider on the Upgrade switch parts of the Brushless motor kit.

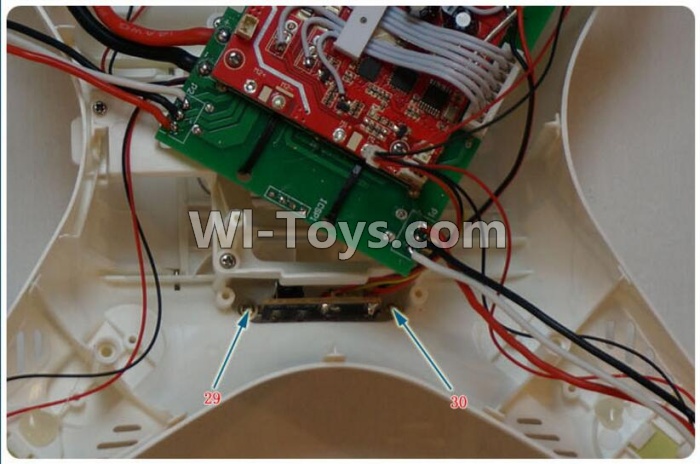

7)Put the Upgrade Switch into the Slot,and use screws fasten it(See the position 29,30 on the below picture)

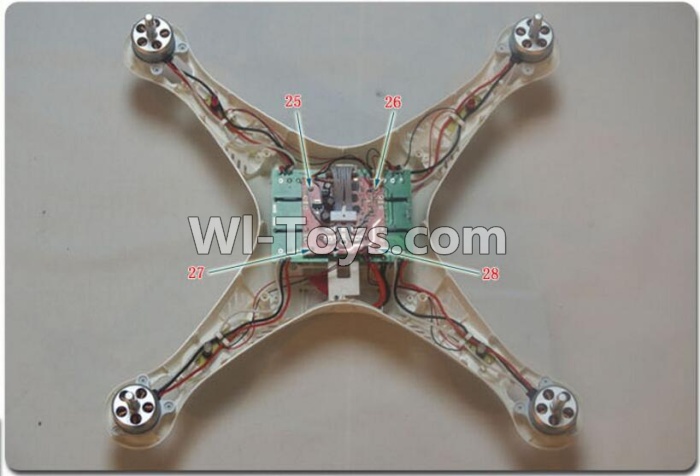

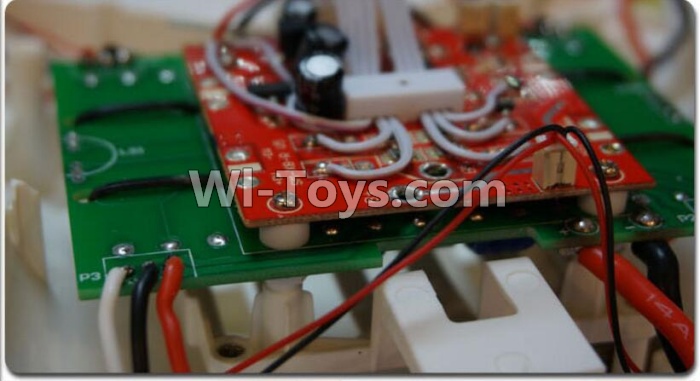

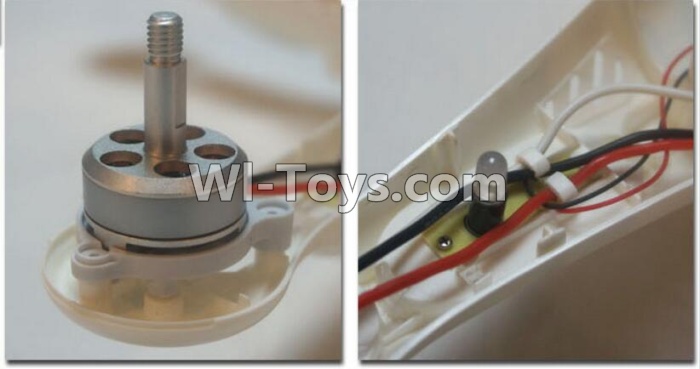

8)Put the Brushles motor ,Upgrade ESC and circuit board into their position and fasten it .(See the position 25,26,27,28 on the below picture)

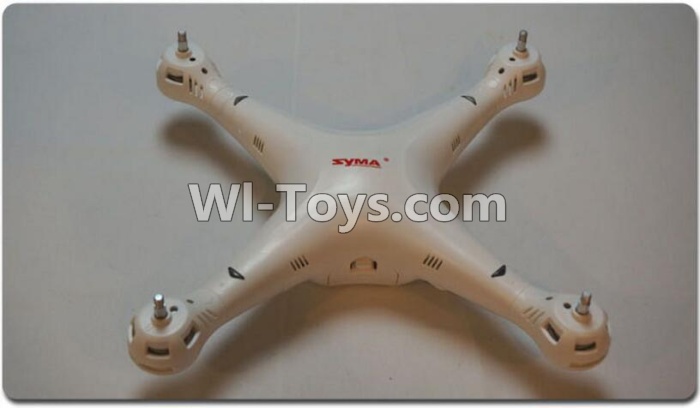

9)Combine the upper and lower shell cover,then Turn the 180 degrees to see the Bottom side of the Quadcopter

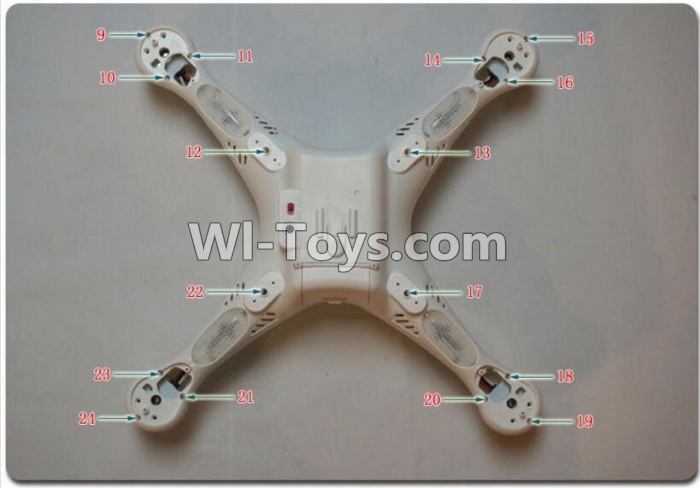

10) Fasten the screws on the position 9-24 ,Total 16pcs Screws.

11) Install the motor cover amd Fasten the screws on the position 1-8,total 8pcs screws

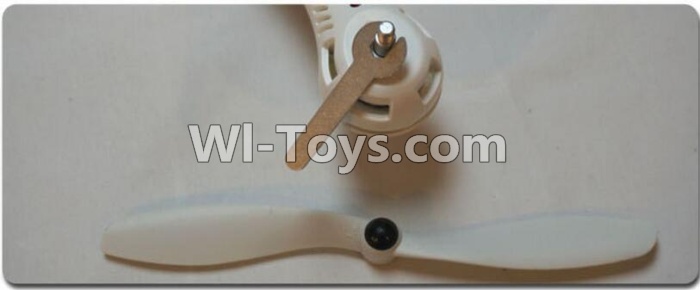

12) Use the special wrench to install the Upgrade Propellers.(Becareful the Forward and reverse positions of the Propellers)

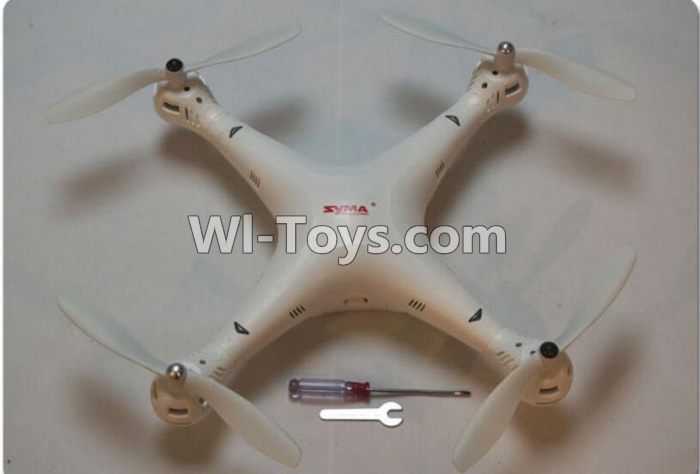

13) All Finished (Becareful the Forward and reverse positions of the Propellers,see the picture belows)
