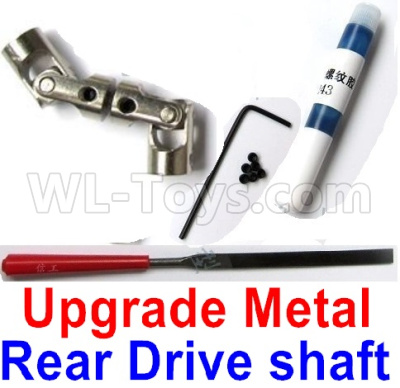

WPL B16 Parts-31-05 Upgrade Rear Metal Drive shaft(1pcs-Silver color)-with screws,wrench and Sickl,WPL B16 B-16 RC Car Parts,WPL 6X6 Parts,WPL B16 B-16 RC Military Truck Spare parts Accessories,WPL 1:16 Off-road Truck Parts

1 First we have to prepare the machine screw, the machine meter screwdriver, and the screw glue. . The machine screw should be glued with a little screw glue and then installed on the screw hole, otherwise it will loosen. . . After tightening the screws, do not twist the screws too much, otherwise the Screws may slip, slippery.

A) Instal the Metal drive shaft for the Front axle diagram

1 This is our general tool for dismantling plastic drive shafts, pay attention to safety.

2 The next step is to remove the plastic drive shaft.

3  Before you istall the Output shaft cover ,you must install 2pcs bearing on the Output shaft cover ,then install the small gear .
You needs to forced, destroyed and dismantled this parts ,then can install it . You can also bake the shaft part with a lighter, then pull it out, Usually roasting 6 second then can pull it out.
We usually use scissors and needle-nosed pliers. After the disassembly, Keep the metal shaft and Input cover .

4 After installation, as shown below. . Remember The machine screw should be glued with a little screw glue.

B) Instal the Rear Metal drive shaft for the The Rear axle diagram:

1) When installing the cover on the front and rear axles, apply a little butter to the gears and install 4 long screws. The screw should not be twisted too tightly, otherwise the gears are too tight and easy to get stuck.

2) screws remember to apply a little screw glue

C)Installation the Metal drive shaft for the drive gear box diagram

1 Disassemble the plastic drive shaft at both ends of the power transmission box. The Disassemble diagram is as follow , Also we prepare the sickle. tool(We will send you a sickle for free ).

2 Mounting the metal drive shaft. We need to use a sickle to polish a plane surface on the Tail end of the shaft,Then use JIMI Machine screws to fix it . Remember to apply glue to the screws..

3 Install as shown below. The 130 180 motors are both suitable for installation.

4 This figure is a 180 motor installation diagram.
